AV Voice Changer Diamond More Other Information

1. Make sure that your microphone and speakers are plugged in properly, and the microphone recording control of the sound card mixer is selected.

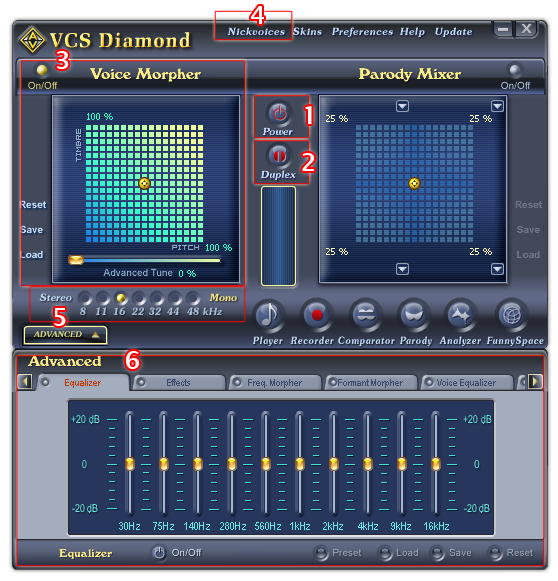

2. Turn VCS Diamond on: Click the Power button (1) on the main panel. Duplex mode (2) is on automatically.


3. Make basic changes on voice: Turn on the Voice Morpher graph (3), move the pointer within the graph or select a nickvoice (preset voice output) by clicking the Nickvoices menu (4). For example, select the For Male Input Voice group if you are a male and if you would like to change your voice to a female one.


4. Start talking into the microphone. You will hear your modified voice at the same time.


5. Make advanced changes on voice: Click the Advanced button to open the Advanced Effects Panel (6).
   • Change the equalizer of sound: Click the Equalizer tab on the Advanced Effects Panel. When you do, the Equalizer module will appear. Then click the ON/OFF button. Make changes to the ten Equalizer sliders, or choose a preset from the Presets menu (for example, Gentle or Soft if you want to smooth out the voice output). If you are still not satisfied, move the Equalizer sliders one by one up or down until you will find the equalization that best suits you.
   • Tips: The quality of the output voice also depends on the type of the audio (Mono/Stereo) and the sample rate of the audio (5). If you use a regular microphone, the following values are recommended:
     Mode: Mono
     Sample Rate: 16000 Hz
   • Add audio effects to voice: Click the Effects tab on the Advanced Effects Panel, turn on the Effects module by clicking the ON/OFF button and then choose the effects to be used.
   • Add background effects to voice: Click the Bg Effects tab on the Advanced Effects Panel, turn on the Effects module by clicking the ON/OFF button and then choose the effects to be used.
   • Make further modifications to your voice: Use the Frequency Morpher, Formant Morpher, Voice Equalizer, Sound Quality, or Non-human voices modules and try the settings there.
